International First
A Multifunction Two Stage Transcritical CO2 Refrigeration System with parallel Compression for Cooling & Heating in high ambient climates
Seven Refrigeration Functions
-31°F (-35°C) Air Blast Freezing.
-4°F (-20°C) Cold Storage.
32°F (0°C) Chill Storage.
50°F (+10°C) Packing Area Cooling.
39 (-e/kg).° F (+4°C) Chilled Water.
64°F (+18°C) Factory Cooling.
72-75°F (+22-24°C) Office AC.
Nine Heating Functions
50°F (10°C) Underfloor Heating Blast Freezer.
122°F (50°C) Hot Glycol Defrost.
122°F (50°C) Hot Glycol Door Heating.
149°F (65°C) Cleaning Hot Water.
185°F (85°C) Hot Process Water.
140°F Office Heating and AC Reheat.
140°F (60°C) Potable Hot Water.
Beneficial Results
33% Reduction in Specific Electrical Energy Consumption, kWh/lb (kWh/kg).
60% Reduction in Specific Gas Consumption, BTU/lb (MJ/kg).
40% Reduction in Specific Emissions, CO2-e/lb (CO2-e/kg).
44% Reduction in Specific Cooling Water Consumption, gallons/lb (I/kg).
Zero Oil Consumption.
International First

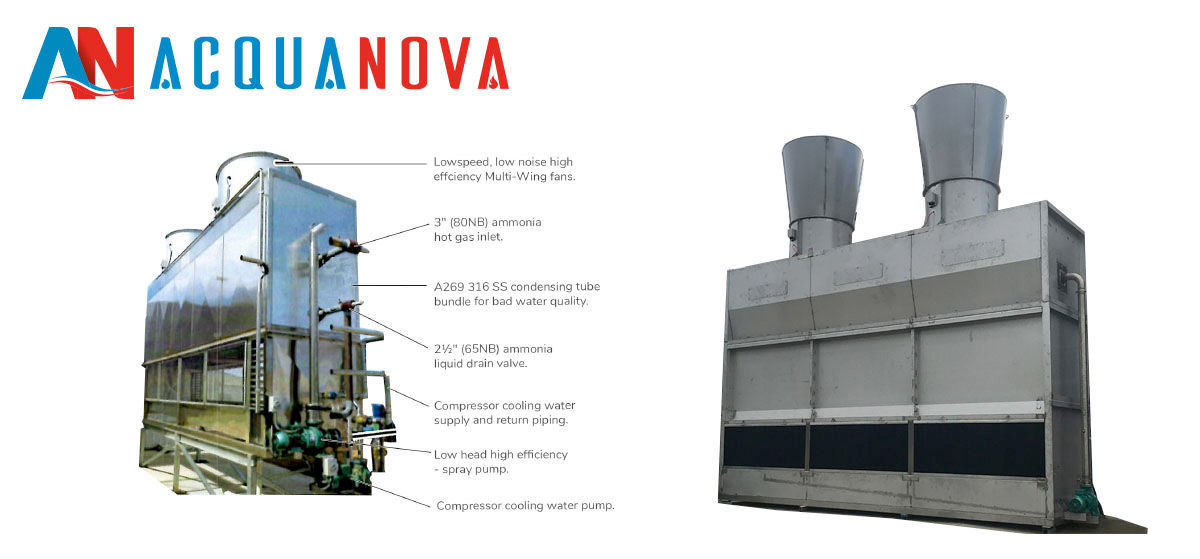

CO2 Evaporative Condenser (CO2 EC)- World First - Original Prototype
BENEFICIAL RESULTS: kWh/kg, 60% Reduction in Specific Gas Consumption, MJ/kg, 40% Reduction in Specific Emissions, CO2-e/kg and 44% Reduction in Specific Cooling Water Consumption, l/kg
CO2 Evaporative Condenser (CO2 EC) Features:
Our CO2EC capacities range from .17-12.3 MM BTUs/hr (50-3,610 kW) at 86° F (30°C) condensing, 75.2° F (24 °C) Wet Bulb.
Converting CO2ECs to Hybrid CO2ECs gives 58-67% capacity increase and 50-60% reduction in water consumption per kW.
All 304 SS construction except fans, pumps, motors, spray nozzles and eliminators. A269 316 SS condensing coil option.
Design operating pressure 1,500psi (100bar).
Test pressure 2,250psi (150bar).
Light & durable construction. Long life cycle.
Energy efficient, low pressure, wide angle.
Square pattern, non-clogging solid cone sprays.
Patents Pending
